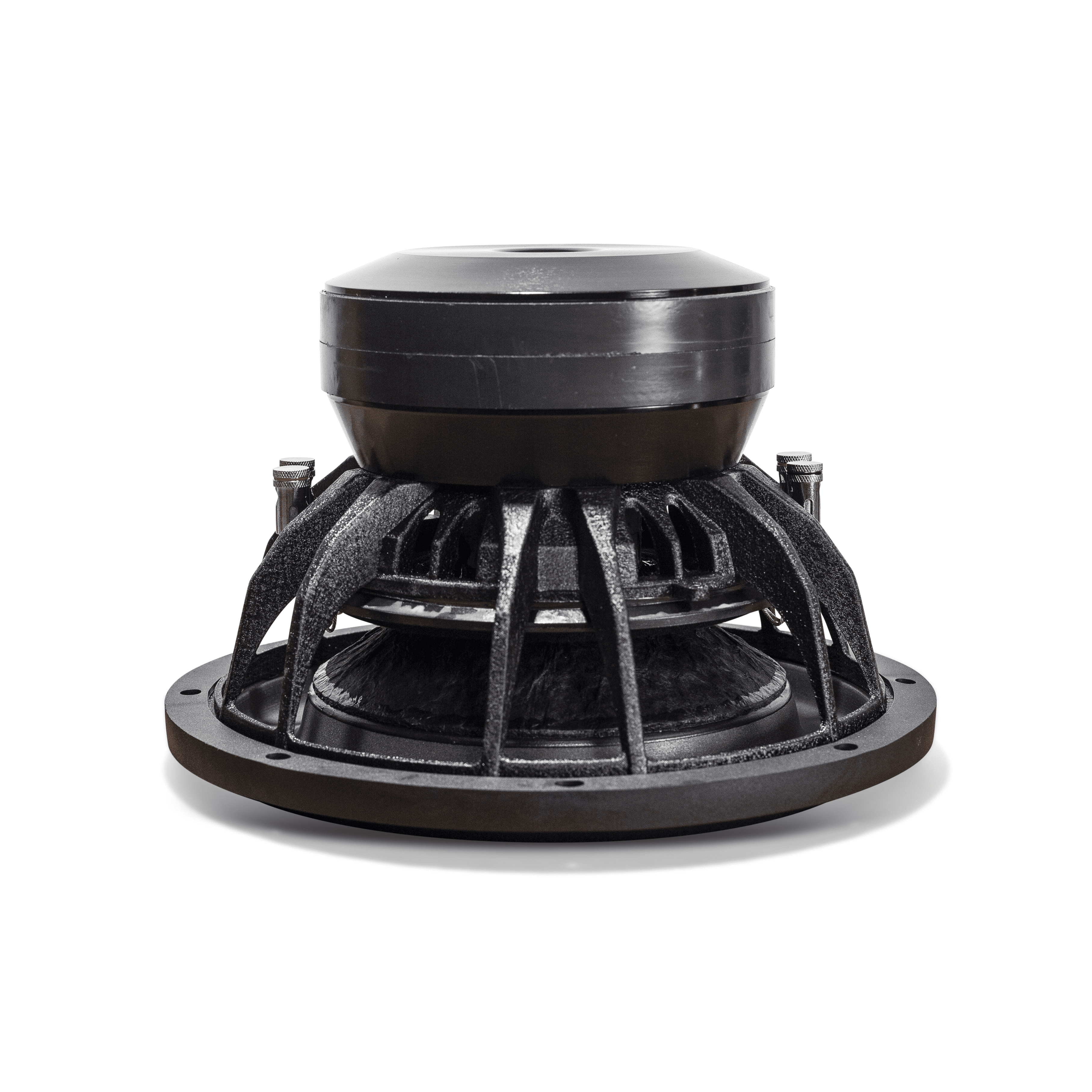

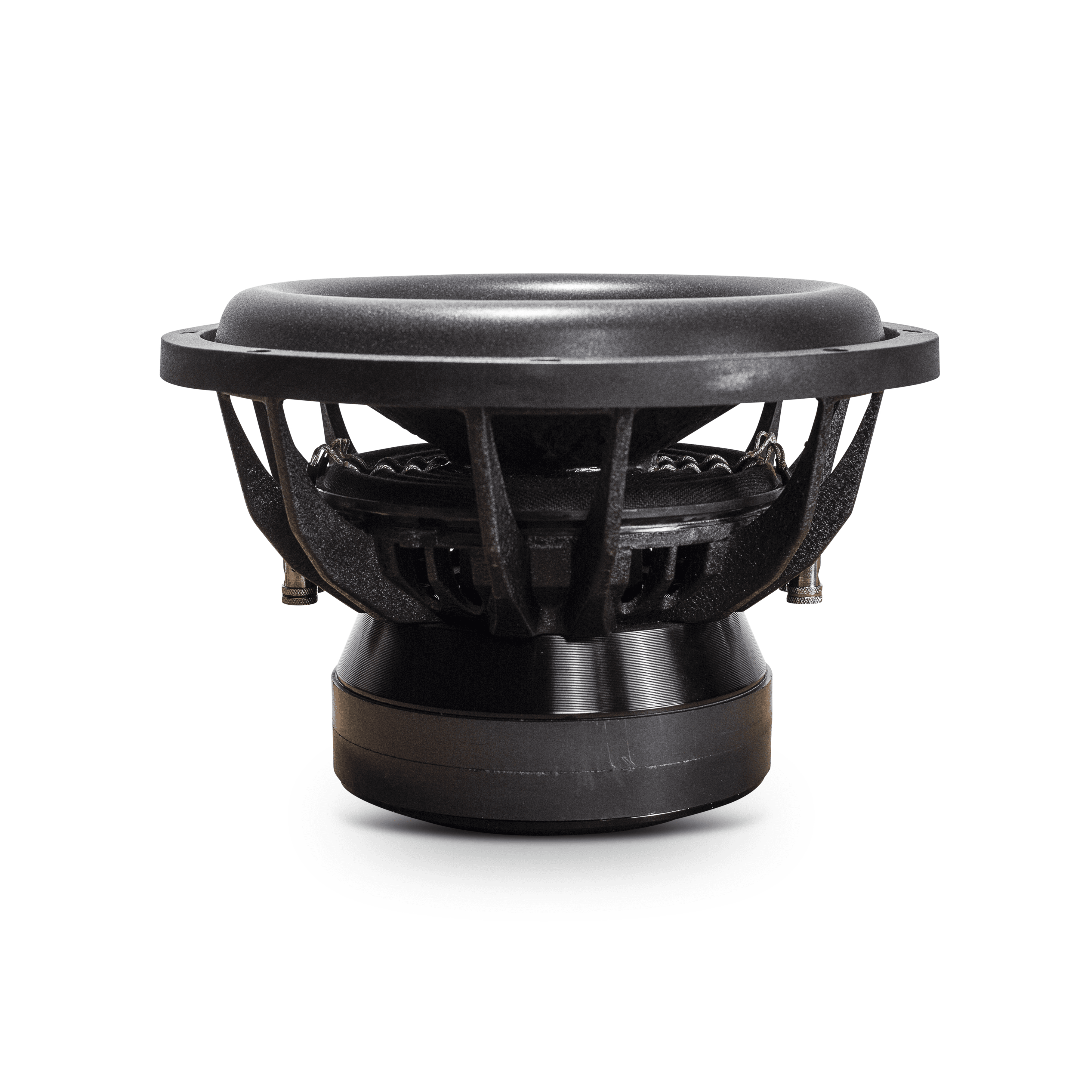

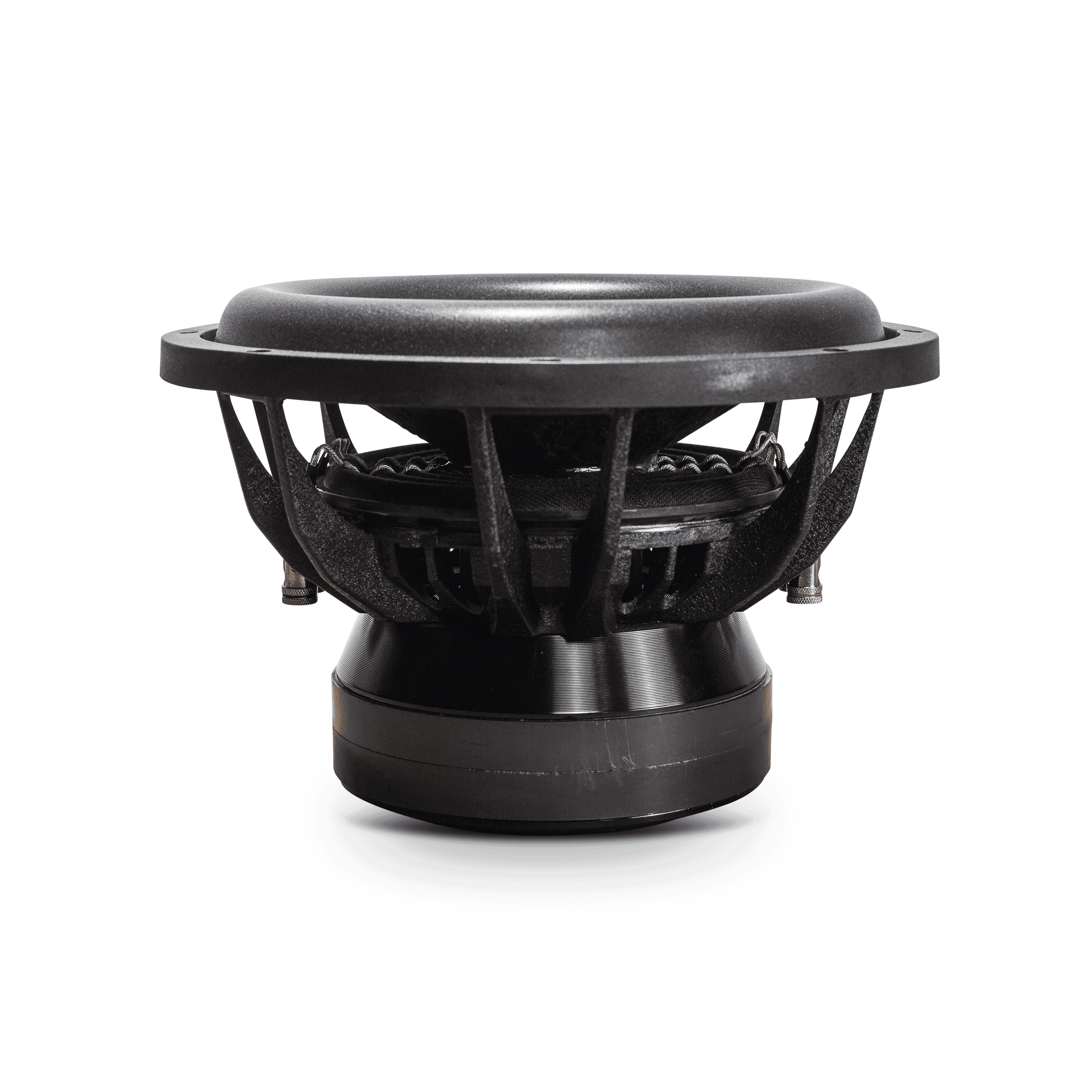

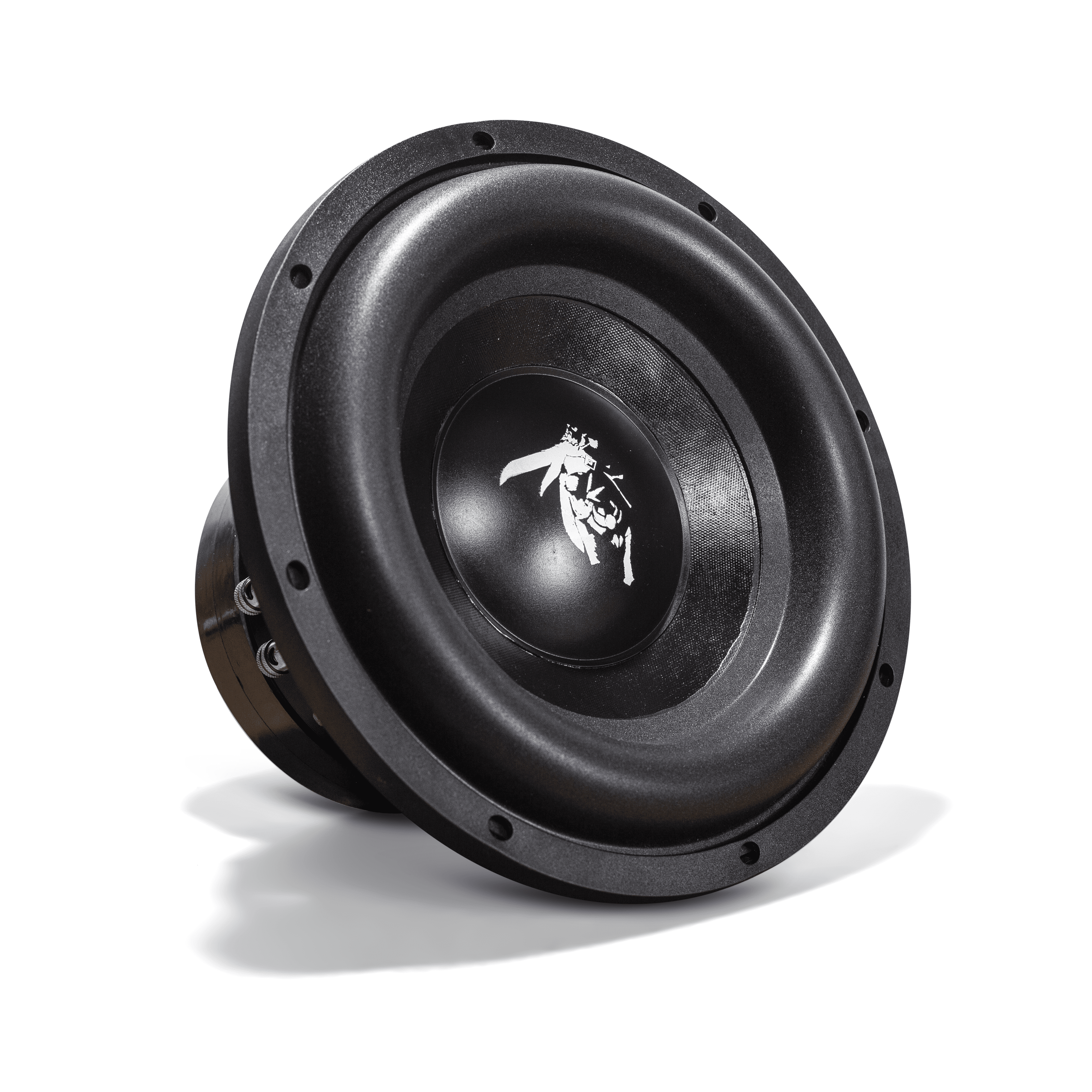

Brahma Mk 2.5 Rev A 12″ | 1000w XBL2 Car Audio Subwoofer

$499.99

  • Patented XBL^2 Linear Motor Technology
  • Hi Temp 3” Flat Wound Copper Voice Coil
  • Non Pressed Paper Cone With Poly Dust Cap
  • Heavy Duty Lead Wires Interwoven into Spiders
  • Y35 Ferrite Magnet Motor Structure w/ Vented Pole
  • 1000W RMS Power Rating
ACIMA

The Adire Audio Brahma has always been known as a legendary driver in the audio industry since the very inception of the namesake in 2002. At that point in time we were at the forefront of high excursion drivers pushing the envelope to truly linear excursion levels never seen before. Fast forward to 2019 and we have went back to the drawing board updating the designs to surpass current industry standards while utilizing Patented XBL^2 motor technology to carry on the legendary namesake of the Adire Audio Brahma.

For 2021 we have added some upgrades to our popular Mark 2.5 Brahma design which include new basket with custom tooled spider adapter for better fit and clearances, carbon fiber dust cap and a 100% Nomex spider for better long term durability. These upgrades are on top of the completely revamped from the ground up design we implemented in 2018 which include utilizing a dual stack of Y35 Grade ceramic ferrite magnets and a fully finite element analysis optimized motor structure. Dubbed the Brahma Mark 2.5 Rev A we have successfully made the driver more compact than the original Brahma for the end user who may be concerned about mounting depth constraints, all the while improving the original legendary performance of the very first Brahma.

We’ve went back to the books on materials science and developed our own proprietary dual 8” progressive roll spider profile. We’ve tested many different blends of materials over the past 2 years and have settled on a 100% Nomex weave for long term durability. This technology is just one small piece of the redesign puzzle which adds up to allow us to keep the Brahma Mark 2.5 Rev A as sound quality oriented as possible, without sacrificing overall SPL output.

The Brahma Mark 2.5 Rev A carries on the world-class sound quality and tonal balance of the original Brahma while still being able to pump out insane SPL output. Doing all of the above in such a clean fashion can only be achieved using XBL^2 motor technology which is why we have stuck to our roots and continued the tradition.

The 2021 Brahma Mark 2.5 Rev A is rated at 1000 watts RMS power handling and features a 3” diameter copper voice coil available in Dual 2 or Dual 4 ohm that will keep you enjoying your music at all levels of excursion and output for many years to come.

The Brahma Mark 2.5 Rev A is truly an audio enthusiasts dream and will bring out the bottom octaves in a truly unique style!

Specifications

Coil Dual 2 or Dual 4
(VC wired in series)
Fs 27.30 Hz | 27.84 Hz
Re 3.21 Ohm | 6.77 Ohm
Qms 6.12 | 6.57
Qes .46 | .45
Qts .42 | .42
Le 3.00 mH
1.50 mH per coil
Mms 256.85 g | 247.26g
Cms .13 mm/N
Sd 481.69 cm^2
Vas 43.60 L | 43.54 L
SPL D2: 84.60 dB @ 1W/1m
D4: 84.94 dB @ 1W/1m
Bl 17.54 Tm | 25.51 Tm
Xmax 28 mm (One Way)
RMS 1000W – RMS

Box Info

Overall Diameter 13.00″
Cutout Diameter 11.375″
Mounting Depth 8.5″ With Pole Venting – 7.25″ Physical
Driver Displacement .13 ft^3
Sealed Enclosure 1-1.25 ft^3
Ported Enclosure Range – 1.75-2.25 ft^3
Daily – 1.75-2.0 ft^3 @ 32hz
Daily Port Area: 28-32 sq in
SQ – 2.25 ft^3 @ 28hz
SQ Port Area – 32-36 sq Inches
Shipping Weight 35 LBS
