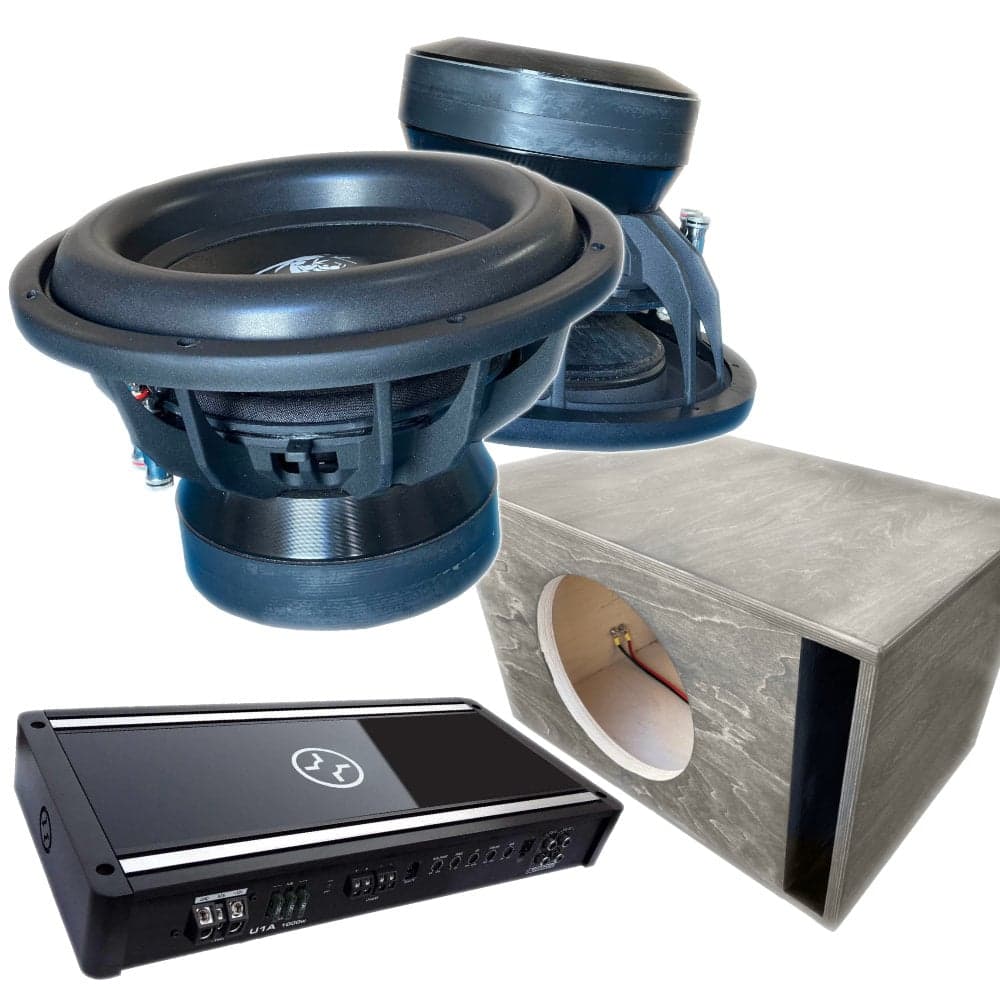

Brahma Mk 2.5 Rev A 12″ + Hybrid Audio Unity Monoblock – U1A + Ported Enclosure

$1,199.99

Brahma Mk 2.5 Rev A 12″

$499.99
Clear

Hybrid Audio Unity Monoblock - UA1

$549.99

Availability: 5 in stock

12" 2.0 Cf Net Ported Enclosure

$389.99

Availability: 9 in stock

ACIMA

Bundle includes (1) Brahma Mk 2.5 Rev A 12″, (1) Hybrid Audio Unity Monoblock and (1) Performance Series – Single 12″ 2.0 Cf Net Ported Enclosure.

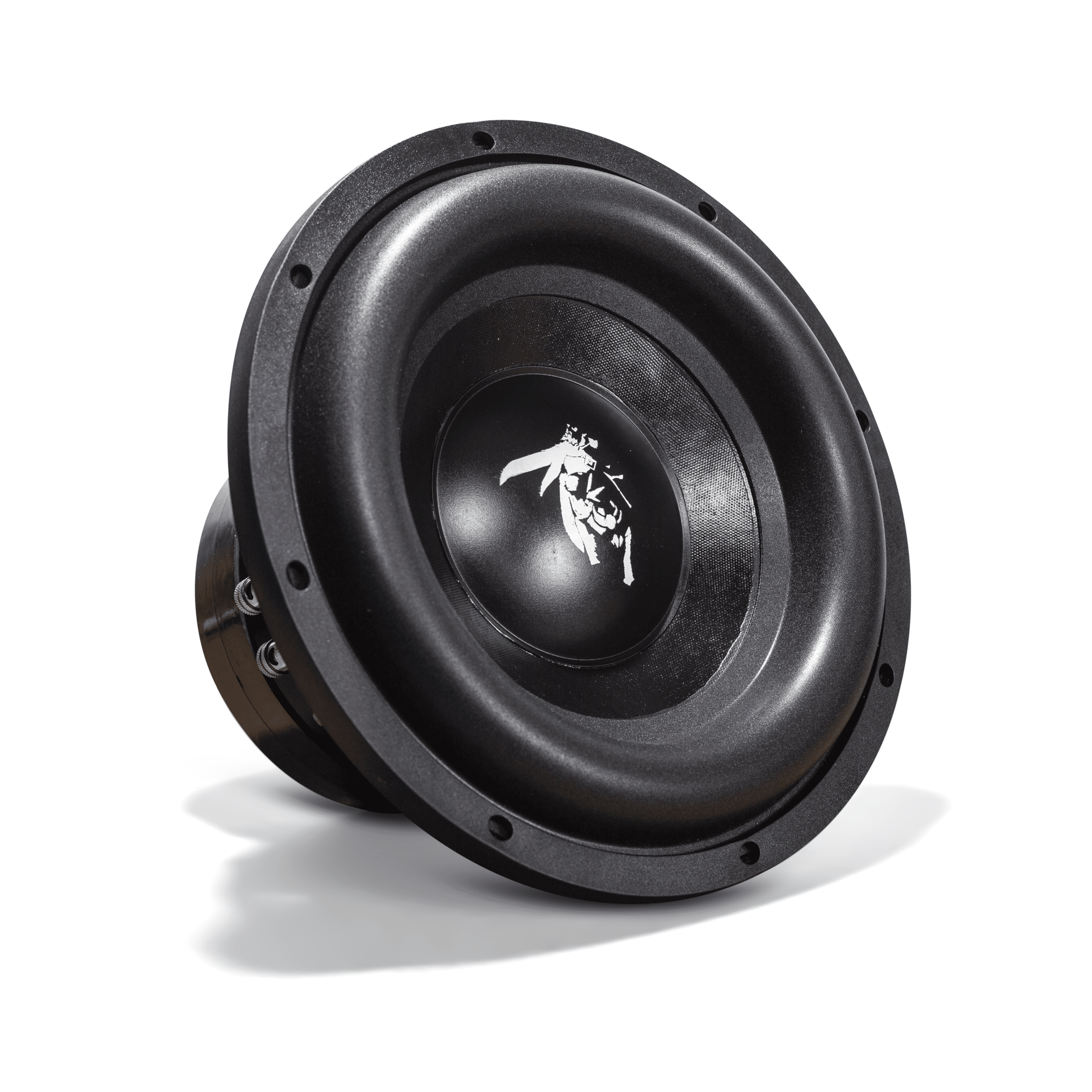

Brahma Mk 2.5 Rev A 12″ Specs:

  • Patented XBL^2 Linear Motor Technology
  • Hi Temp 3” Flat Wound Copper Voice Coil
  • Non Pressed Paper Cone With Poly Dust Cap
  • Heavy Duty Lead Wires Interwoven into Spiders
  • Y35 Ferrite Magnet Motor Structure w/ Vented Pole
  • Dual Progressive Spiders
  • 1000W RMS Power Rating

Hybrid Audio Unity Monoblock Specs:

  • Power RMS @ 4 ohms: 600w x 1
  • Power RMS @ 2 ohms: 1000w x 1
  • Low Pass Filter: 50-250 Hz
  • Frequency Response: 10-250 Hz
  • Signal to Noise Ratio: >100 db
  • Input Sensitivity: 350 mV – 6 V
  • Input Impedance: 22k Ohm
  • Minimum Speaker Impedance: 2 Ohm mono
  • Fuse Rating: 30A x 3
  • Dimensions (mm): 185 x 55 x 410
  • Dimensions (in): 7.3 x 2.2 x 16

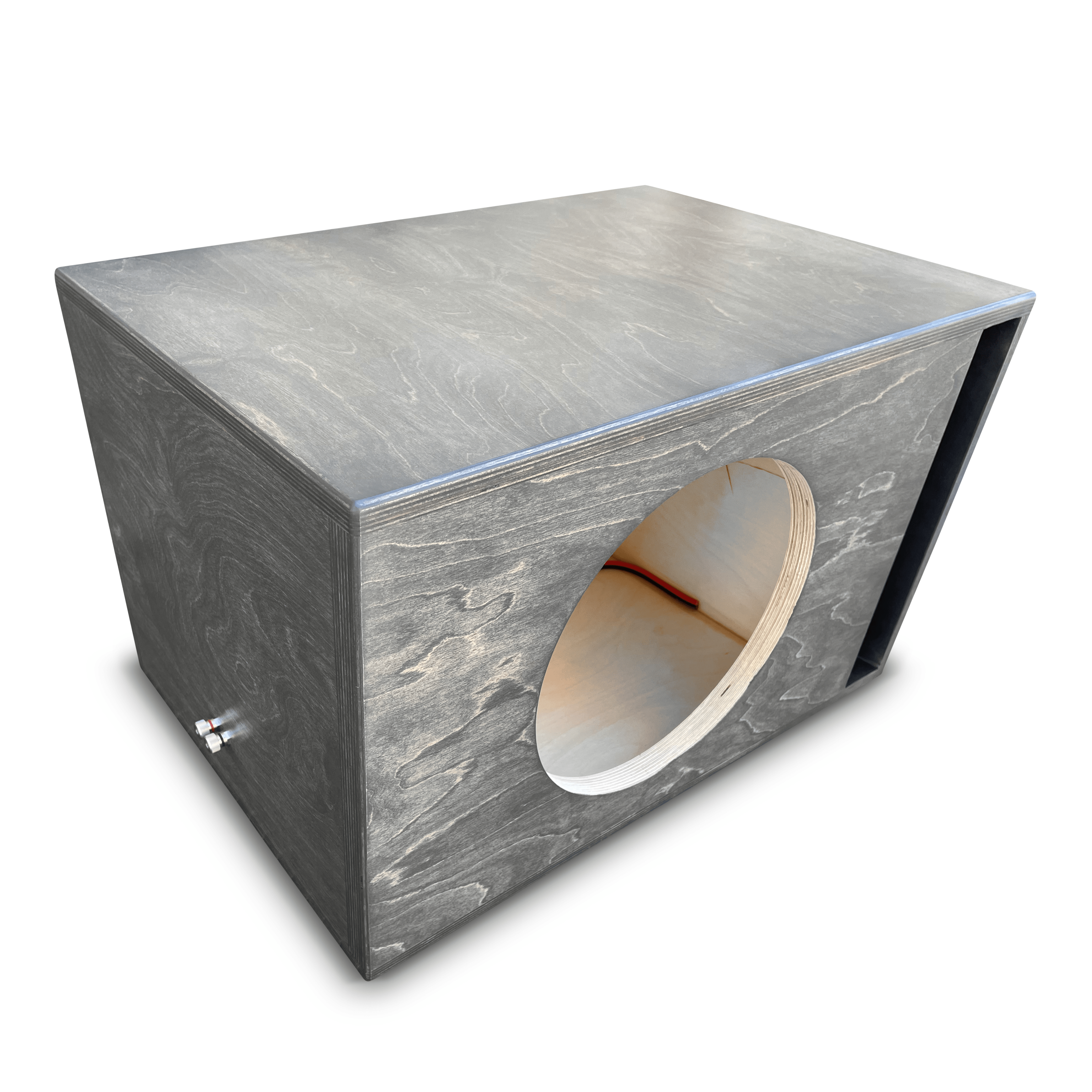

Single 12″ 2.0 Cf Net Ported Enclosure Specs:

  • 2.1 cubic feet net enclosure
  • 32 hz tuning
  • 31.5 sq inches of port
  • 11.125″ subwoofer cut out
  • 1″ baffle
  • 13 ply birch veneer construction
  • Gray stained finish
  • Pre-wired metal binding post
