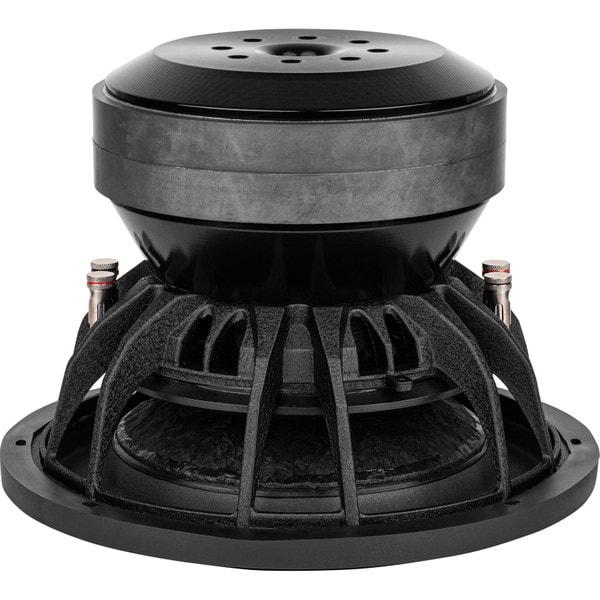

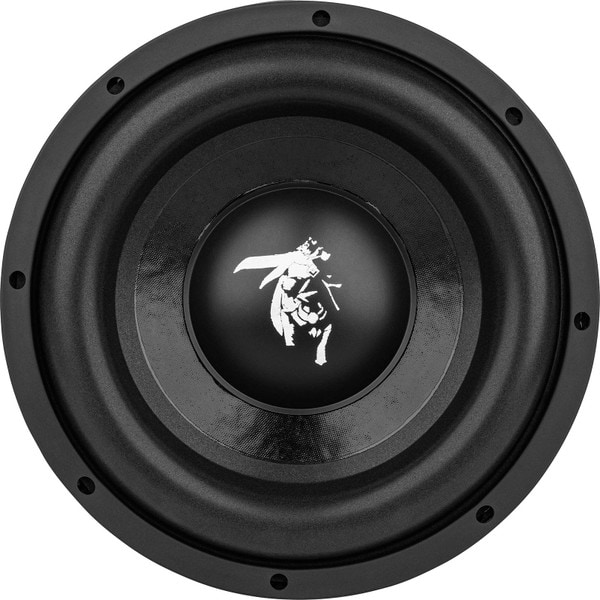

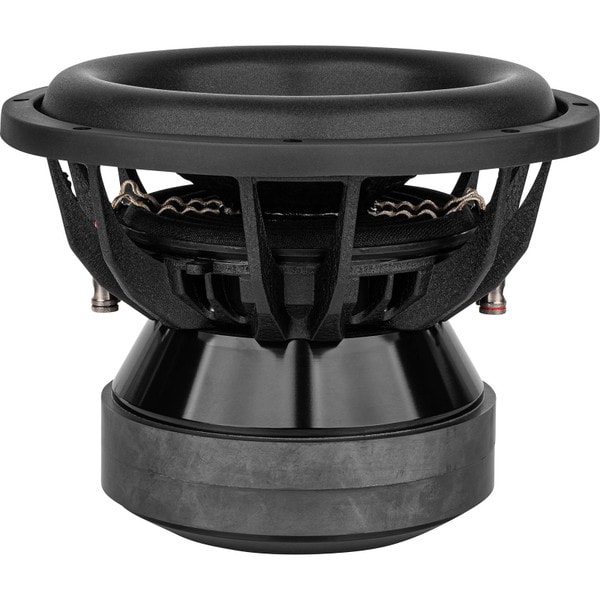

Brahma X 12" | 1500w XBL2 Car Subwoofer

$649.99

Patented XBL^2 Linear Motor Technology
Hi Temp 3” Flat Wound Aluminum Voice Coil
Non Pressed Paper Cone With Poly Dust Cap
Heavy Duty Lead Wires Interwoven Into Spiders
Y35 Ferrite Magnet Motor Structure w/ Vented Pole
Custom Tooled Dual Progressive Spider Pack
1500W RMS Power Rating

Specifications

Coil	Dual 2 or Dual 4 (VC wired in series)
Fs	27.09 Hz \| Comming Soon!
Re	3.71 Ohm \| Coming soon!
Qms	5.23 \| Coming Soon!
Qes	.541 \| Coming Soon!
Qts	.49 \| Coming Soon!
Le	D2: 1.79 mH per coil D4: Coming Soon
Mms	265.92 g \| Coming Soon!
Cms	.129 mm/N
Sd	791.73 cm^2
Vas	115.56 L \| Coming Soon!
SPL	D2: 88.02 dB @ 1W/1m D4: Coming Soon!
Bl	17.63 Tm \| Coming Soon!
Xmax	32mm (One Way)
RMS Power	1500 W

Box Info

Overall Diameter	15.625″
Cutout Diameter	14.00″
Mounting Depth	8.75″ (9.75″ with pole vent)
Driver Displacement	.17 ft^3
Sealed Enclosure	3-4 ft^3 Net
Ported Enclosure	3-5 ft^3 Net @ 32hz
Weight	50LBS
