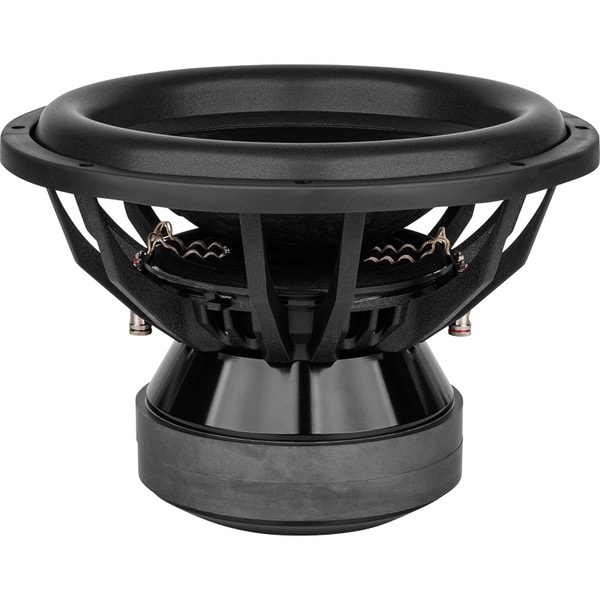

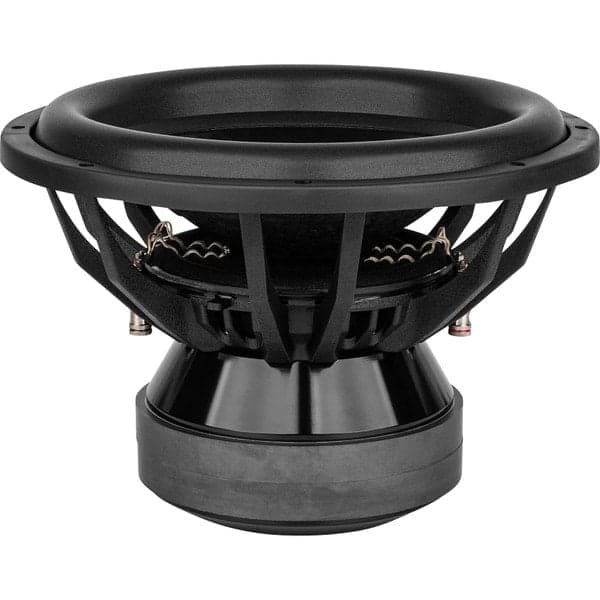

Brahma X 15" | 1500w XBL2 Car Subwoofer


  • Patented XBL^2 Linear Motor Technology
  • Hi Temp 3” Flat Wound Aluminum Voice Coil
  • Non Pressed Paper Cone With Poly Dust Cap
  • Heavy Duty Lead Wires Interwoven Into Spiders
  • Y35 Ferrite Magnet Motor Structure w/ Vented Pole
  • Custom Tooled Dual Progressive Spider Pack
  • 1500W RMS Power Rating


Coil Dual 2 or Dual 4
(VC wired in series)
Fs 27.09 Hz | Comming Soon!
Re 3.71 Ohm | Coming soon!
Qms 5.23 | Coming Soon!
Qes .541 | Coming Soon!
Qts .49 | Coming Soon!
Le D2: 1.79 mH per coil
D4: Coming Soon
Mms 265.92 g | Coming Soon!
Cms .129 mm/N
Sd 791.73 cm^2
Vas 115.56 L | Coming Soon!
SPL D2: 88.02 dB @ 1W/1m
D4: Coming Soon!
Bl 17.63 Tm | Coming Soon!
Xmax 32mm (One Way)
RMS Power 1500 W

Box Info

Overall Diameter 15.625″
Cutout Diameter 14.00″
Mounting Depth 8.75″
(9.75″ with pole vent)
Driver Displacement .17 ft^3
Sealed Enclosure 3-4 ft^3 Net
Ported Enclosure 3-5 ft^3 Net @ 32hz
Weight 50LBS
