Brahma

$399.99$499.99

  • Patented XBL^2 Linear Motor Technology
  • Hi Temp 3” Round Wound Copper Voice Coil
  • Non Pressed Paper Cone With Poly Dust Cap
  • Heavy Duty Lead Wires Interwoven into Spiders
  • Y35 Ferrite Magnet Motor Structure w/ Vented Pole
  • Dual Progressive Spiders
  • 1000W RMS Power Rating
Clear
ACIMA

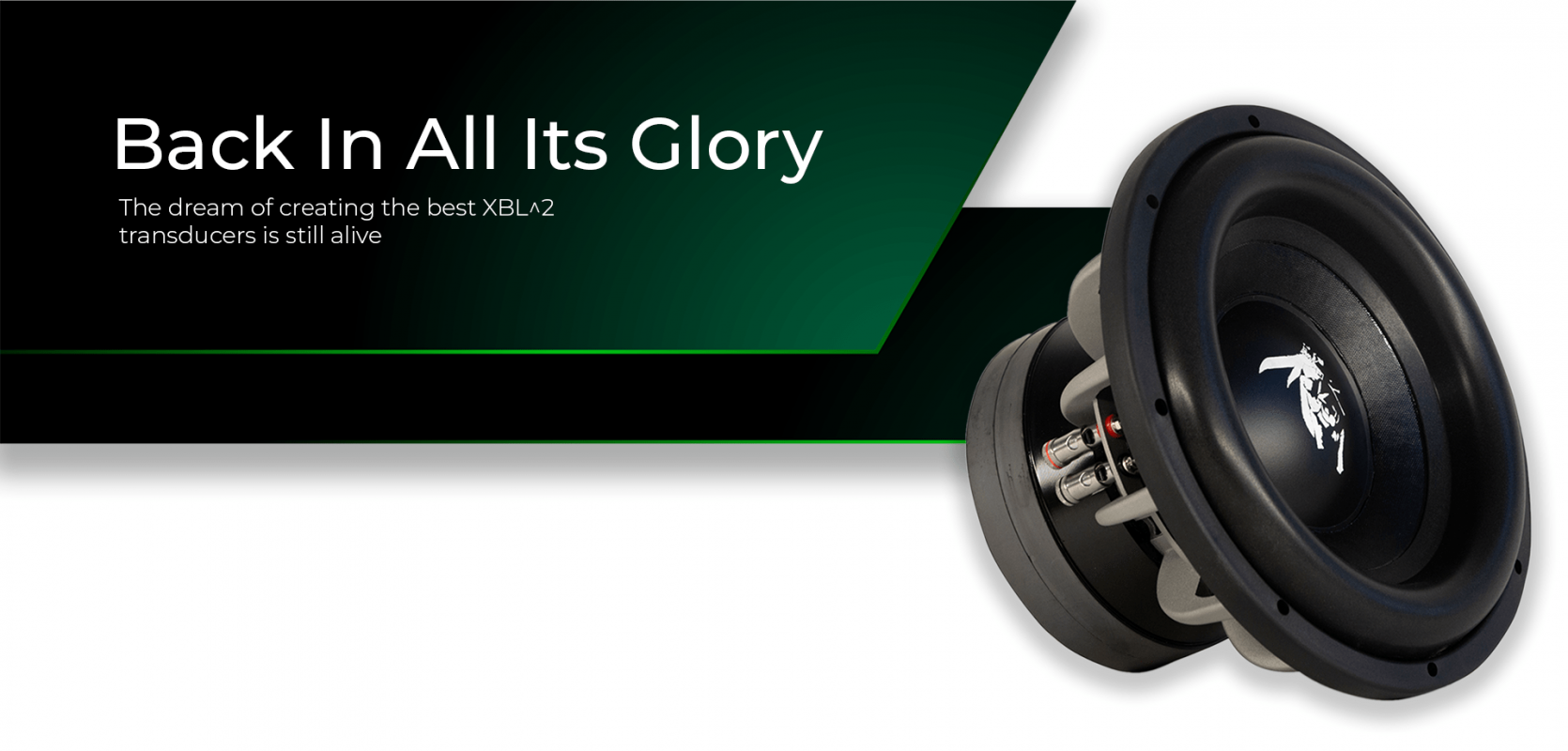

Glory

/ D e s c r i p t i o n

/ T h i e l e - S m a l l - P a r a m e t e r s

Brahma 10"Brahma 12"Brahma 15"
CoilDual 2 or Dual 4
(VC Wired in Series For All Tests)
Dual 2 or Dual 4
(VC Wired in Series For All Tests)
Dual 2 or Dual 4
(VC Wired in Series For All Tests)
Fs28.95 Hz | 29.05 Hz27.30 Hz | 27.84 Hz24.39 Hz | 24.66 Hz
Re3.21 Ohm | 6.77 Ohm3.21 Ohm | 6.77 Ohm3.21 Ohm | 6.77 Ohm
Qms6.42 | 6.746.12 | 6.575.53 | 5.28
Qes.43 | .42.46 | .45.51 | .50
Qts.40 | .40.42 | .42.47 | .46
Le3.00 mH
1.50 mH per coil
3.00 mH
1.50 mH per coil
3.00 mH
1.50 mH per coil
Mms217.17 g | 215.33 g256.85 g | 247.26g323.08 g | 317.15 g
Cms.13 mm/N.13 mm/N.13 mm/N
Sd334.50 cm^2481.69 cm^2791.73 cm^2
Vas20.78 L | 20.81 L43.60 L | 43.54 L117.29 L | 116.88 L
SPLD2: 82.37 dB @ 1W/1m
D4: 82.53 dB @ 1W/1m
D2: 84.60 dB @ 1W/1m
D4: 84.94 dB @ 1W/1m
D2: 86.94 dB @ 1W/1m
D4: 87.16 dB @ 1W/1m
Bl17.53 Tm | 25.00 Tm17.54 Tm | 25.51 Tm17.59 Tm | 25.71 Tm
Xmax28mm (One Way)28mm (One Way)28mm (One Way)
RMS Power1000 W1000 W1000 W

/ T e c h n i c a l - S p e c i f i c a t i o n s

Brahma 10"Brahma 12"Brahma 15"
Overall Diameter11.00" 12.50"15.625"
Cutout Diameter9.125" 11.125"14.00"
Mounting Depth6.50" 7.625" 8.125"
9.625" With Pole Vent
Driver Displacement.10 ft^3 .13 ft^3 .17 ft^3
Sealed EnclosureQTC .65 - .45 ft^3
QTC .7 - .36 ft^3
QTC .8 - .25 ft^3
QTC .65 - 1.10 ft^3
QTC .7 - .87 ft^3
QTC .8 - .59 ft^3
QTC .65 - 4.50 ft^3
QTC .7 - 3.40 ft^3
QTC .8 - 2.18 ft^3
Ported EnclosureRange - .75-1.25 ft^3
Daily - .75-1.25 ft^3 @ 33hz
Daily Port Area: 20-23 sq in
SQ - 1.25 ft^3 @ 30hz
SQ Port Area - 25-30 Sq Inches
Range - 1.75-2.25 ft^3
Daily - 1.75-2.0 ft^3 @ 32hz
Daily Port Area: 28-32 sq in
SQ - 2.25 ft^3 @ 28hz
SQ Port Area - 32-36 Sq Inches
Coming Soon
Shipping Weight30 LBS 35 LBS 40 LBS
